Custom Pipelines and Custom Properties

1. Introduction

If you are new to CRM, you might be curious about Custom Pipelines and Custom Properties and their importance. In short, each business has unique sales stages, and CRM software allows customization of pipelines to suit these needs. Custom properties are fields linked with objects such as Leads, Deals, and Customers. While some basic fields are pre-defined, custom properties allow you to create additional fields to track or associate with your lead/deal/customer object.

In summary, custom pipelines and properties are crucial for tailoring your CRM to meet your business requirements. This blog aims to guide you in creating Custom pipelines and properties in Kenyt CRM.

However, it’s important to note that you need admin access to create Custom pipelines and properties for your organization.


2.1 Create A New Custom Pipeline

Step 1: To create custom pipeline, you must navigate to CRM settings from the left navigation var.
CRM -> Settings -> CRM Settings.

Step 2: Click on the Add New Pipeline button highlighted below.

Step 3: Choose the object type for which you want to create the custom pipeline from the drop-down.

You will see Lead, Deal, Order and Customer as options.

Once you select the object type, a new form will open where you can define the name and stages of your pipeline.

The existing stages in the CRM are default stages associated with the object. They can be kept or deleted based on the business requirements. To add a new stage, click on the “Add Stage” button which will create a new row at the bottom of the table.

Enter the Name of the stage, the Probability percentage (chance for the lead to convert when in this stage), the Rotten Period (number of days after which the lead will be marked as red), and the column colour (this will appear as the stage colour in both the table view and board view).

2.2 Reorder stages in custom pipeline

To reorder the stages in the CRM, simply click and hold on the stage row that you want to move and drag it up or down to the desired position.

You will now see this new pipeline in the Pipeline view.

2.3 View the custom pipeline under Sales Funnel

You can view this newly created Pipeline under All Pipeline of the Leads object.

We will now move to create a custom property for the object Lead/Deal/Order/Customer.

3. Create Custom property for Objects

3.1 User defined custom property

Step 1: To create custom pipeline, you must navigate to CRM settings from the left navigation var.

CRM -> Settings -> CRM Settings

  • System Properties are the predefined fields for an object.
  • Custom properties are fields that can be created by an administrator and associated with the object.

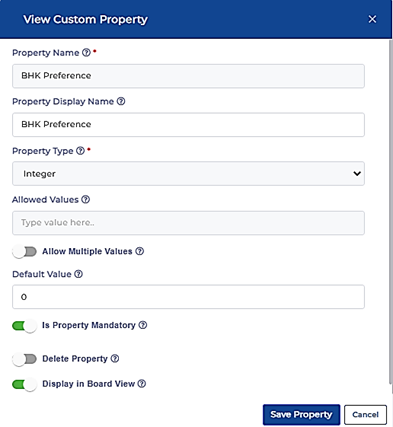

To create the custom property, click the Lead/Contact/Deal/etc and then click onAdd Custom Property button.

Supported Property Types are String, Boolean, DateTime and Integer

Mandatory property will be marked with * as required field.

Board View will show this property name and value

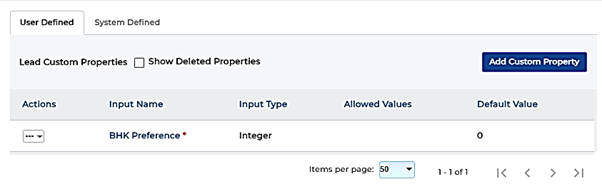

You will find this newly created user defined custom property in the list of properties below.

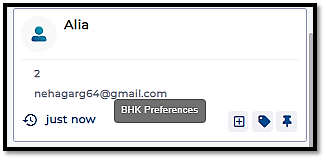

This is how property look in board view.
Note: You can have multiple user-defined custom property created for an object.

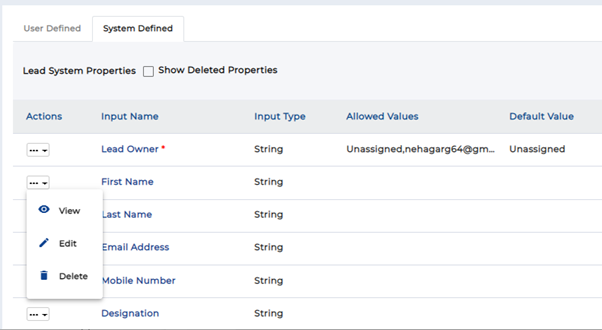

3.2 System Defined Properties

A default list of system properties is provided for an object to assist in establishing basic properties that may be relevant to an organization. These properties can be modified or removed at the user’s discretion.

Similar to user defined property, you can choose to mark system property as mandatory or display in board view.

4. Conclusion

We hope that you have been successful in creating custom properties and pipelines within Kenyt CRM. If you encounter any difficulties or have any questions, please don’t hesitate to contact us at with the title of this post as the subject. I wish you all the best in utilizing Kenyt CRM to efficiently manage your sales funnel.
